HT-250 Rotary valves are used for transferring dry powders and granulates out of filter housings, cyclones, silos and hoppers. The rotary valves can also be used for discharging dry, powdered or granulated products from a storage hopper or silo into a mixer, grinding mill, conveyor screw, dryer or cooler or, in some cases, for discharging into a pneumatic transport system. In most of the above-mentioned applications, besides serving as a discharging component, the HT-250 rotary valves also function as an air lock, to maintain a certain pressure differential in the system.

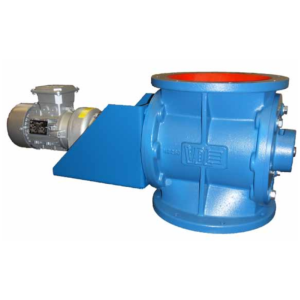

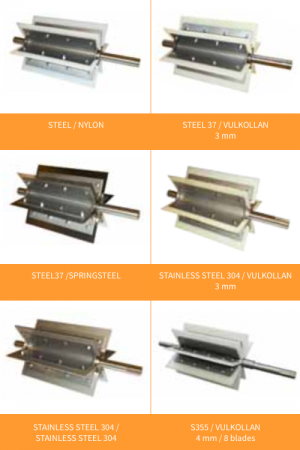

The versions with Vulkollan rotorblades are suitable for use with product temperatures up to 60ºC, the versions with metal rotorblades up to 80ºC and the heat resistant versions up to 200ºC. Depending on the choice of drive system the rotary valve is suitable for use in an ambient temperature up to 40ºC.
SPECIFICATIONS FOR ROTARY VALVES TYPE HT-250
| CONNECTION FLANGES | DN 250 - DN 350 |
| IN- AND OUTLET | Ø = 250 mm |
| ROTOR CONSTRUCTION | Open, with 6 or 8 chambers |
| DRIVE UNIT | Direct, with flexible coupling and gearmotor NORD 0,37 kW 230/400V, 50 hz IP55, iso F |
| ROTATION SPEED | 31 rpm |
| ROTOR VOLUME | 6.5 to 35 LITERS |
| BODY AND COVERS | Cast iron GG25 |
| ROTOR | Steel or stainless steel with 6 or 8 chambers and replaceable and adjustable rotor blades |
| BEARINGS | External bronze plain bearings, self-lubricating |
| SEALING | 6 plastic blades, thickness 3 mm: filtring and sealring 6 springsteel or stainless steel blades: feltring, bronze bush and sealring 8 Polyurethane blades, thickness 4 mm: bronze bush and sealring, no feltring. Rotor: heavy welded version |
| SHAFT SEAL | Bronze bush and oil sealing |
| MAX. OPERATING PRESSURE | 5.000 Pa (500 mmWK), with 8 blades: 10.000 Pa (1.000 mmWK) |
| MAXIMUM PRESSURE DIFFERENCE | 0.05 bar (with 6 chambers), 0.1 bar (with 8 chambers) |
| TEMPERATURE | -15C up 60C (with stainless steel- and springsteel: 80C) |
| CAPACITY | ca. 7 liter / rev (100% filling) |
| FINISHING | - In- and outlet painted in color RAL 3020 (red) - Body, covers and motorconsole painted in color RAL 5009 (blue) - Other RAL colors available at surcharge |

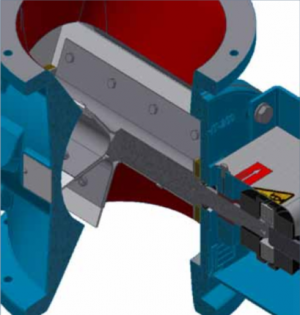

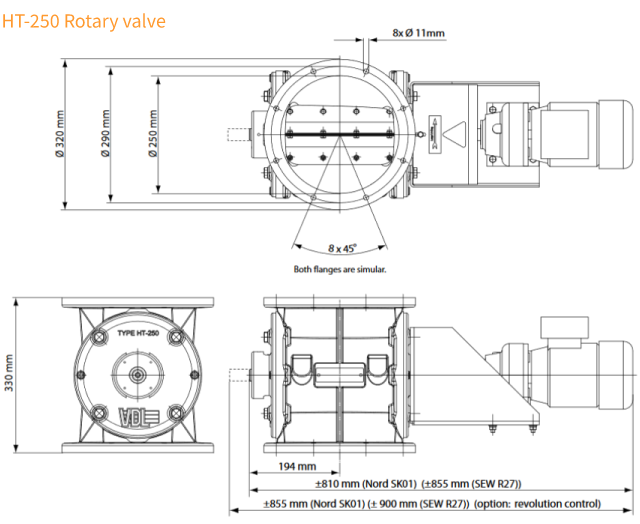

DIMENSIONS FOR TYPE HT-250 ROTARY VALVE
